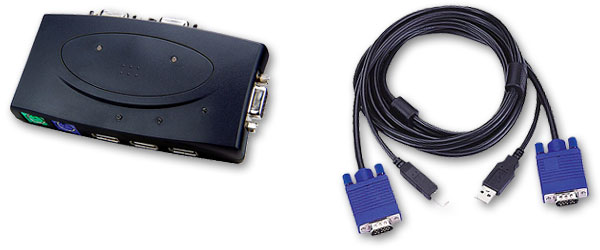

Model No. KC-121

Features
  1. Control 2 PCs with one PS/2 keyboard (or USB keyboard), one PS/2 mouse (or USB mouse) and one monitor. Save space, time and equipment costs.
    @
  2. Supports PS/2 keyboard and mouse.
    @
  3. Supports 3 USB downstream ports.
    @
  4. Supports 3 types of switching: push button on device, hot keys and On-Screen-Display (OSD) utility (for Windows only).
    @
  5. Supports smart selection to automatically switch to an existing host when one active host is disabled.
    @
  6. Supports error alarm when the switching is improper.
    @
  7. Supports VGA resolution up to 1920 x 1440.
    @
  8. Plug and Play. No software driver is needed for PS/2 mouse and keyboard operation.

@

Specifications
Dimensions (LXWXH) 120 x 68 x 26mm
Unit Weight 130g
Cable Length 1.8M x 2
Connect Ports USB, VGA, PS/2
USB Upstream port X 2
USB Downstream port USB 1.1 x 3
VGA Input port X 2
VGA Output port X 1
Mini PS/2 port X 2 (Keyboard, Mouse)
Working PC selection Push Button/Hot key/OSD(Optional)
PC selection button X 1
Compliant with USB version USB 1.0/USB 1.1
Compliant with HID version USB HID 1.1
Video Resolution 2048 x 1536 (Max.)
Auto Switch Yes
Over-Current protection Yes
Power & Working LED indicator Yes
Working PC status indicator X 2
Power By host bus power
OS Complies Windows 98/98SE/ME/2000/XP, Mac OS9/X, Linux, Sun Micro OS

@

@
