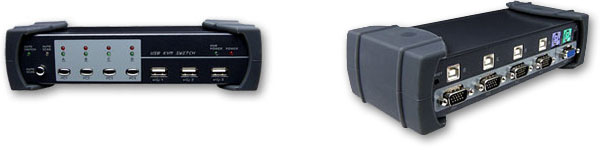

Model No. KC-141

Features
  1. Provides 4 USB upstream ports and VGA input to support the switching between 4 host PC.
    ¡@
  2. Complies with USB specification: 1.0/1.1
    ¡@
  3. Control 4PCs with one PS/2 Keyboard (or USB Keyboard) , One PS/2 mouse (or USB mouse) and one Monitor.
    ¡@
  4. Support 3 USB downstream ports (especially for sharing USB printers, USB storage, USB CD-RW etc..)
    ¡@
  5. Support 3 types of switching: Hardware push button, hot keys on PS2 Keyboard, and On-Screen-Display (OSD) Utility software (for Windows only)
    ¡@
  6. OSD functions include
    (1) Display which host is plugged or which host is selected.
    (2) Support Device detector to display USB downstream ports status.
    ¡@
  7. Support smart selection to automatically switch to an existing host when one active host is disabled.
    ¡@
  8. Support error alarm when the switching is improper.
    ¡@
  9. Support VGA resolutions up to 1920 x 1440
    ¡@
  10. Plug and Play. No software driver is needed for PS/2 mouse and Keyboard operation.
    ¡@
  11. Support the Force Switch function for VGA cable plugged only or to specify the host for booting procedure.
    ¡@
  12. Support Win 98/SE/ME/2000/XP;Linux/MAC/Sun Marco OSs.

¡@
Specifications
Dimensions (LXWXH) 200 x 85 x 44mm
Unit Weight 720g
Cable Length 1.8M x 4
Connect Ports USB, VGA, PS/2
USB Upstream port X 4
USB Downstream port USB 1.1 x 3
VGA Input port X 4
VGA Output port X 1
Mini PS/2 port X 2 (Keyboard, Mouse)
Working PC selection Push Button/Hot key/OSD(Optional)
PC selection button X 4
Compliant with USB version USB 1.0/USB 1.1
Compliant with HID version USB HID 1.1
Video Resolution 2048 x 1536 (Max.)
Auto Scan Yes
Auto Switch Yes
Over-Current protection Yes
Power & Working LED indicator Yes
Working PC status indicator X 4
VGA status indicator X 4
Power By host or external power adaptor
Power Adaptor DC 5V/2A (Optional)
OS Complies Windows 98/98SE/ME/2000/XP, Mac OS9/X, Linux, Sun Micro OS

¡@
