• Console your Keyboard / Mouse via PS/2 and/or USB arbitrarily.
• Complex connections with PCs via PS/2 and/or USB arbitrarily.

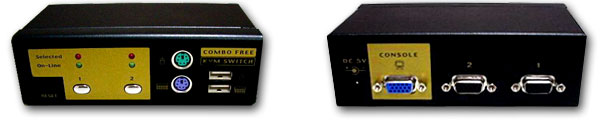

• 2-Port Combo Free KVM Switch .
• User's Manual.
• Two sets of integrated (2 x PS/2 + USB + VGA) cables.

1. Controls 2 computers from a single console (Keyboard/Mouse) over PS/2 and/or USB connections.
   　
2. Supports Windows, Linux, Mac OS9/OSX, Sun.
   　
3. Emulates a keyboard on each PC to allow your computers to boot normally without a keyboard error.
   　
4. Supports hot-swap. All devices connected to the KVM can be added or removed at any time, without shutting the unit down.
   　
5. Supports 2 types of switching:
   (1) Hardware Push Button, (2) Hot-Keys on PS/2 and/or USB of keyboard.
   　
6. Supports Auto-Scan function to alternate video between both computers in preset intervals.
   　
7. Supports LED display for Selected and On-Line status monitoring.
   　
8. Supports VGA resolutions up to 2048 x 1536 @ 85HZ.
   　
9. Supports Beeper during Switching enabled.
   　
10. Self powered through PS/2 and/or USB connection.
    　
11. Fully compliant with the USB 1.1/ 2.0 specification

　

Number Of Computers Controlled		2
Selection Method		Push Button and Hot-Key (PS/2 and/or USB Keyboard)
LEDs		Red for PC Selection Green for PC On-Line ready
PC Connectors	Video	1 x HDB-15 male ( PS/2 & USB signal combined )
Console Ports	Keyboard	1 x 6 pin mini-DIN female
	Mouse	1 x 6 pin mini-DIN female
	Video	1 x HDB - 15 female
	Keyboard	1 x USB - A type female
	Mouse	1 x USB - A type female
Auto-Scan Interval		From 5 to 250 Seconds
DDC, DDC2 monitor		Yes (Max. Resolution: 2048x1536)@85Hz
Hot Swappable		Yes
Operating systems supported		Windows 98SE/ME/2000/XP/2003 Server, Linux Mac OS9/OSX and Sun Micro System
Device driver		No Need
Power		By PS/2 and/or USB or Power Adaptor (Optional)
Cable Length		6 feet (1.80 Meter)
Dimensions (L X W X H)		14 x 8.5 x 4.5 cm
Unit Weight		440 g
Housing material		Metal
Operating Temperature		32~ 122°F (0~ 50°C )
Humidity		0%~80%RH
