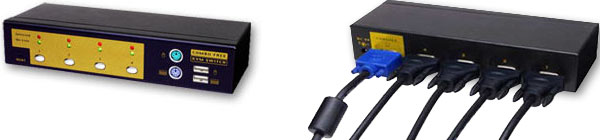

Model No. KCF-141

Overview
Advantages : (Pantent No. TW M 284961)
  • Console your Keyboard / Mouse via PS/2 and/or USB arbitrarily.
  • Complex connections with PCs via PS/2 and/or USB arbitrarily.
Package Contents
  • 4-Port Combo Free KVM Switch .
  • User's Manual.
  • Four sets of integrated (2 x PS/2 + USB + VGA) cables.

Features


  1. Controls 4 computers from a single console (Keyboard/Mouse) over PS/2 and/or USB connections.
  2. Supports Windows, Linux, Mac OS9/OSX, Sun.
    ¡@
  3. Emulates a keyboard on each PC to allow your computers to boot normally without a keyboard error.
    ¡@
  4. Supports hot-swap. All devices connected to the KVM can be added or removed at any time, without shutting the unit down.
    ¡@
  5. Supports 2 types of switching:
    (1) Hardware Push Button, (2) Hot-Keys on PS/2 and/or USB of keyboard.
    ¡@
  6. Supports Auto-Scan function to alternate video between both computers in preset intervals.
    ¡@
  7. Supports LED display for Selected and On-Line status monitoring.
    ¡@
  8. Supports VGA resolutions up to 2048 x 1536 @ 85HZ.
    ¡@
  9. Supports Beeper during Switching enabled.
    ¡@
  10. Self powered through PS/2 and/or USB connection.
    ¡@
  11. Fully compliant with the USB 1.1/ 2.0 specification

¡@
Specifications
Number Of Computers Controlled4
Selection MethodPush Button and Hot-Key (PS/2 and/or USB Keyboard)
LEDsRed for PC Selection
Green for PC On-Line ready
PC ConnectorsVideo1 x HDB-15 male ( PS/2 & USB signal combined )
Console PortsKeyboard1 x 6 pin mini-DIN female
Mouse1 x 6 pin mini-DIN female
Video1 x HDB - 15 female
Keyboard1 x USB - A type female
Mouse1 x USB - A type female
Auto-Scan IntervalFrom 5 to 250 Seconds
DDC, DDC2 monitorYes (Max. Resolution: 2048x1536)@85Hz
Hot SwappableYes
Operating systems supportedWindows 98SE/ME/2000/XP/2003 Server, Linux
Mac OS9/OSX and Sun Micro System
Device driverNo Need
PowerBy PS/2 and/or USB or Power Adaptor (Optional)
Cable Length6 feet (1.80 Meter)
Dimensions (L X W X H)21.5 x 8.8 x 4.5 cm (5.5 X 3 X 1.7 inches)
Unit Weight650 g
Housing materialMetal
Operating Temperature32~ 122¢XF (0~ 50¢XC )
Humidity0%~80%RH

¡@
