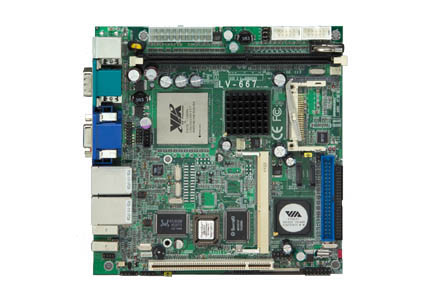

LV-667
Socket 478 Main Board
|
LV-667
|
|
| Specification : | |
| Processor | Onboard VIA C3 1.0GHz L1/L2 Cache:128/64KB |
| Chipset
|
VIA CN400 and VT8237(R) |
| Memory
|
1 x 184-pin DIMM supports DDR266/333/400 up to 1GB Non-ECC, unbuffered memory supported only |
| IDE
Interface |
UltraDMA133 IDE Interface supports up to 4 ATAPI devices Onboard one 40-pin and one 44-pin IDE connectors |
| RTC | VIA VT8237(R) built-in RTC with Lithium battery |
External
I/O |
1 x PS/2 2 x RS232 serial ports, 1 x VGA, 1 x Audio, 2 x RJ45, 2 x USB2. 0 2 x IEEE1394a |
| Internal I/O |
2 x RS232, 1 x FDD, 1 x Audio, 1 x CDIN, 2 x USB2. 0, 1 x IEEE1394a 1 X S/PDIF, 1 x IrDA, 1 x 8-bit GPIO |
| LAN |
VIA VT6103 Ethernet PHY and REALTEK 8100B PCI Ethernet controller 10Base-T/100Base-YX, IEEE802. 3U compliance |
| Watchdog Timer |
System reset programmable watchdog timer |
Audio |
VIA VT1616 AC97 Codec 5.1 Channel output with Line-out/Front, Line -in/Rear and MIC-in/Center |
SATA |
VIA VT8237(R) built-in two Serial ATA ports RAID 0, 1 supported |
| VGA |
VIA CN400 built-in VIA/S3 UniChrome Pro Graphics Frame buffer size up to 64 MB shared with system memory Optional DVI, 18/24-bit LVDS and HDTV interfaces |
| BIOS |
Phoenix-Award 4Mb PnP BIOS |
Operating
Temperature |
Operating Within 0~60 centigrade Storage Within - 20~85 centigrade |
| Power
Requirement |
Standard ATX power supply |
| Expansion
Interface |
1 x slim PCI slot Optional 1 x mini AGP socket |
| Form Factory : 195 mm (W) x 245 mm (L), Mini ATX |
