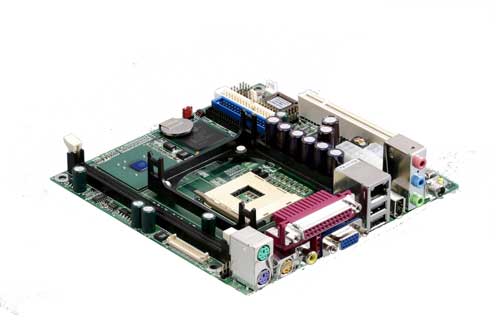

LV-670
Socket 478 Main Board
|
LV-670
|
|
| Specification : | |
| Processor | Intel Pentium 4/Celeron processors Package : FC - PGA478 FSB : 400/533MHz |
| Chipset
|
intel 845GV and ICH4 |
| Memory
|
1 x 184pin DIMM supports up to 1GB with DDR266/333 |
| IDE
Interface |
UltraDMA100 IDE Interface supports up to 4 ATAPI devices Onboard one 40-pin and one 44-pin IDE connectors |
| RTC | Intel ICH4 built-in RTC with Lithium battery |
External
I/O |
1 x PS/2 Keyboard and Mouse ports,1x Parallel Port,1x DB15 VGA port 1 x S-video and Composite TV-out connectors, 1 x RJ45 LAN and 2 x USB2. 0 port 1 x IEEE1394 port and 1 x S/PDIF connector |
| Internal I/O |
1 x RS232 serial port, 2 x USB2. 0 ports, 1 x IrDA port |
| LAN |
Intel ICH4 integrates with Intel 82562ET PHY 10Base-TX autoswitching,IEEE802. 3U compliance |
| Watchdog Timer |
System reset programmable watchdog timer with 1~255 sec/min of timeout value |
Audio |
Intel ICH4 integrates with REALTEK ALC655 AC97 Codec 5.1 Channel output with Line-out/Front, Line-in/Rear and MIC-in/Center |
TV-out |
Intel 845GV integrates with Chrontel 7011A/7017A-T Encoder |
| VGA |
Intel 845GV built-in Intel Extreme Graphics Technology Frame buffer size up to 64MB shared with system memory Integrated TV-out and Optional 24-bit dual channel LVDS interfaces |
| BIOS |
Phoenix-Award 4Mb PnP BIOS |
Operating
Temperature |
Operating Within 0~60 centigrade Storage Within - 20~85 centigrade |
| Power
Requirement |
Standard ATX power supply |
| Expansion
Interface |
1 x PCI slot |
| Form Factory : 195 mm (W) x 245 mm (L), Mini ATX |
