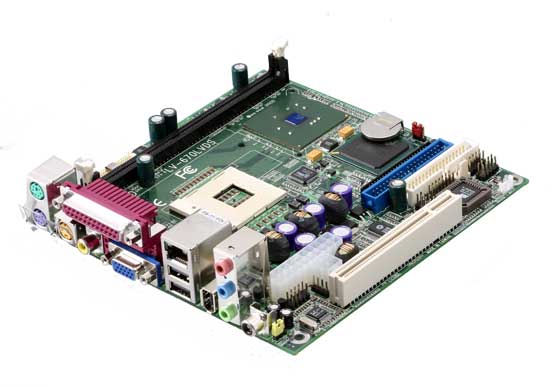

LV-670M
 Socket 478 Main Board
Specification :
Processor

Intel Pentium 4-M

Package : FC - PGA478

FSB : 400MHz
Chipset

intel 845GV and ICH4
Memory
1 x 184pin DIMM supports up to 1GB with DDR200/266
IDE Interface

UltraDMA100 IDE Interface supports up to 4 ATAPI devices

Onboard one 40-pin and one 44-pin IDE connectors
RTC Intel ICH4 built-in RTC with Lithium battery
External I/O

1 x PS/2 Keyboard and Mouse ports,1x Parallel Port,1x DB15 VGA port

1 x S-video and Composite TV-out connectors, 1 x RJ45 LAN and 2 x USB2. 0 port

1 x IEEE1394 port and 1 x S/PDIF connector

Internal I/O

 1 x RS232 serial port, 2 x USB2. 0 ports, 1 x IrDA port, 1 x LVD, 1 x LCD inverter
LAN

Intel ICH4 integrates with Intel 82562ET PHY

10Base-T/100Base-TX autoswitching,IEEE802. 3U compliance

Watchdog

Timer

System reset programmable watchdog timer with 1~255 sec/min of timeout value
Audio

Intel ICH4 integrates with REALTEK ALC655 AC97 Codec

5.1 Channel output with Line-out/Front, Line-in/Rear and MIC-in/Center
TV-out
 Intel 845GV integrates with Chrontel 7017A-T Encoder
VGA

Intel 845GV built-in Intel Extreme Graphics Technology

Frame buffer size up to 64MB shared with system memory

Integrated 24-bit dual channel LVDS and TV-out interfaces
BIOS
 Phoenix-Award 2Mb PnP BIOS
Operating Temperature

Operating Within 0~60 centigrade

Storage Within -20~85 centigrade
Power Requirement
 Standard ATX power supply
Expansion Interface
1 x PCI slot
 Form Factory : 195 mm (W) x 245 mm (L), Mini ATX
