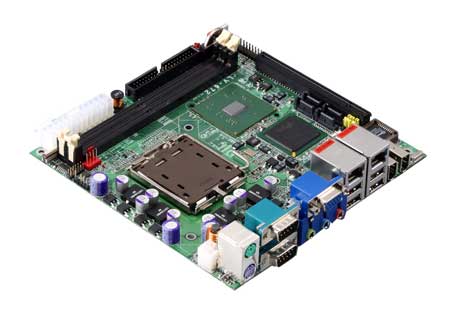

LV-672

Socket 775

Main Board

Intel Pentium 4/Celeron D processors

Package :LGA775

FSB :533/800MHz

L2 Cache: 256KB/1MB

intel 915G and ICH6R

2 x 240-pin DIMM supportsup to 2GB with DDR 400/533

Non-ECC,unbuffered memory supported only

UltraDMA100 IDE Interface supports up to 2ATAPI devices

Onboard one 40-pin IDE connector

1 x PS/2 , 2 x RS232 serial ports, 1 x VGA, 1 x Audio, 2x RJ45, 2 x USB2. 0

2 x IEEE1394a

1 x RS232 serial port, 2 x USB2. 0 ports, 1 x IrDA port

1 x SMBus, 1 x AUdio, 1 x CDIN, 1 x IrDA, 41 x 8-bit GPIO

Dual Intel 82541GI PCI Gigabit Ethernet controller

10Base-T/100Base-TX/1000Base-T,IEEE802. 3U compliance

System reset programmable watchdog timer with 1~255 sec/min of timeout value

Intel 915GM built-in Intel GAM900 Graphics

Frame buffer size up to 224MB shared with system memory

Operating Within 0~60 centigrade

Storage Within - 20~85 centigrade

Standard ATX 20-pin/24-pin power supply

Realtek ALC655 AC97 Codec

5.1 Channel output with Line-out/Front, Line-in/Rear and MIC-in/Center

Intel ICH6R built-in 4 x Serial ATA ports

RAID 0, 1 and Intel Matrix Storage Technology supported

1 x PCIExpress 16x slot (1x compatible)

1 x mini PCI socket supports TYPEIII modulet on solder side
