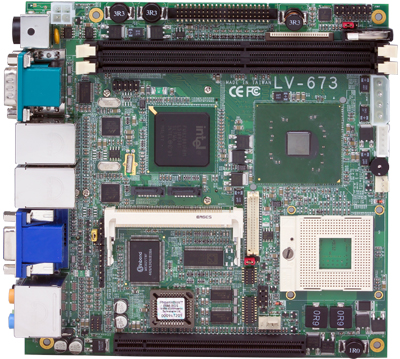

LV-673
Socket 478 Main Board

Intel Pentium M/Celeron M processors

Package :FC-pgA478

FSB Side Bus:400/533MHz

intel 915G and ICH6-M

2 x 240-pin DIMM with DDR2 400/533 up to 2GB of capacity

UltraDMA33 IDE Interface supports up to 2 ATAPI Devices

Onboard one 44-pin IDE connector

2 x RJ45 LAN ports, 1 x DB15 VGA port, 1 x PS/2 port

2 x RS232 ports, 4 x USB2. 0 ports and 1 x DC input

2 x RS232 1 x slim FDD,1 x 8bit GPIO, 1 x S/PDIF, 1 x CDIN, 2 x USB2. 0

1 x TV-out, 1 x IrDA, 1 x power input, 1 x power output, 1 x LVDS, 1 x LCD inverter

Amplified speaker out, Line-in/MIC-in

Dual Marvell E8053 PCI Express Gigabit Ethernet controller

10/100/1000Base-T,full duplex and IEEE802. 3U compliance

System reset programmable watchdog timer

Intel 915GM GMCH built in GAM (Graphic Media Accelerator)900 Graphics

Up to 128MB frame buffer size shared with system momory

Built-in HDTV and 18-bit dual channel LVDS interfaces

Operating Within 0~60 centigrade

Storage Within - 20~85 centigrade

DC 12V input(10.5V~13V)

Realtek ALC880 High Definition Audio Codec

7.1 Channel output

Intel ICH6-Mintegrated 2 SATA ports with up to 150Mb/s of transfer rate

1 x PCI Express 16x slot (1x compatible)

1 x mini PCI socket for TYPEIII and 1 x PCMCIA slot on solder side
