P6F-212
Socket 370 Main Board

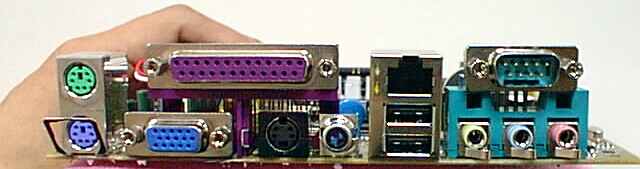

Rear View of MainBoard
|
P6F-212
|
|
|
|
| Specification : | |
| Processor | Support
VIA C3 or Eden Processor on board (up to 933 MHz) Support 128K L1 & 64K L2 |
|
Chipset
|
VIA VT8601A , North Bridge Integrated AGP 2X with 2D/3D Graphic Acceleration VIA VT8231 , South Bridge Sound Blaster, Sound Blaster Pro Compatible |
| Memory
|
2 x 168 pin DIMM socket, Support PC100/133 SDRAM up to 1 GB memory size |
|
IDE
|
Support 2 x IDE ports with Ultra DMA 33/66/100 mode |
| I/O |
On Chip I/O Integrated with PS/2 Mouse, K/B, FDD, Serial, & Parallel ports |
|
LAN |
On board VIA VT6103 chip, Support 10/100 Mbs Ethernet LAN |
|
TV-OUT
|
On board VIA VT1621 chip, Support S-Video and Composite Video output for NTSC/PAL TV |
|
USBs |
Support USB 1.1 ports, 2 x Rear panel & 2 x Front panel by cable (optional) |
| Expansion |
1 x PCI slot |
|
BIOS |
Award Plug & Play BIOS, And support DOC Flash memory (8 - 32 MB) |
Form
Factory: 17
cm (W) x 17cm (L), Mini ATX |
